K Series

Entry Point Source Speaker

Kseries

A basic entry level lineup of the speaker brand has a significant meaning.

The basic entry level lineup gives impression of not only the technology of making speakers, but also the color of the sound that the brand wants to pursue.

Kooon Audio is pursuing precision-designed high quality, high output and high sound quality, and there is no exception with the K Series, the entry level lineup.

It has a lower output than the top lineup, but you can feel the Kooon Audio’s sound with high resolution and density. It also provides enough screw mount points for rigging installations along with holes for pole mounts.

In addition, you can feel the unique character of K Series by its enclosure design which can be used as a monitor speaker and it consist of only 6-inch model in the entire lineup.

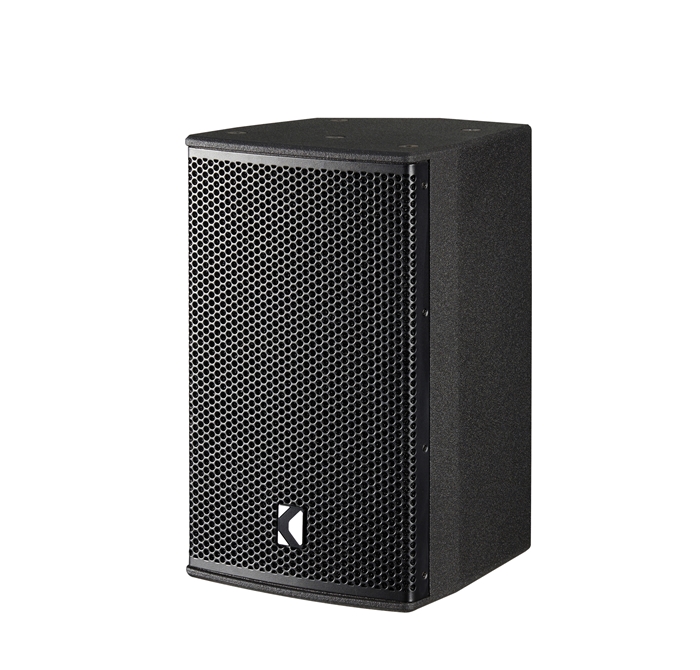

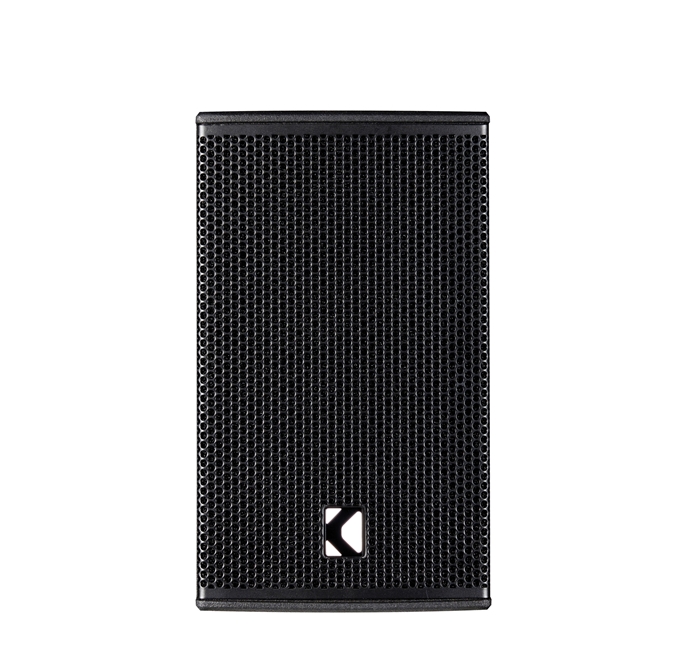

K.6 Downloads

Description

· Minimum Size Full-Range Speaker

· 6.5" Mid Low & Mid Ragne Frequency Transducer

· 1" High Frequency Compression Driver

· High-density 12T MDF Enclosure

· Dedicated Passive Network

· Provide DSP Data


The K.6 is the smallest full-range speaker in the K.Series. Rich mid-range reproduction and clear high-frequency reproduction are enough to make you feel as if you are listening to a HiFi speaker, and it also has a rich low range and strong sound pressure for its size. It is a passive type speaker with a passive network, and you can feel excellent sound quality without using a separate processor. When using the dedicated amplifiers K2008 and K8008 together, DSP data is provided for improved performance.


TECHNICAL SPECIFICATIONS

Type Passive AES Power / Program Power / Peak Power 220W / 440W / 880W
Nominal Impedance Sensitivity (1W / 1m) 92dB
Max SPL 121.4dB Dispersion Angle(Horn) 80° x 60°

PRODUCT FEATURES

Frequency Range (-10dB) 85Hz ~ 20kHz Weight 8.87kg
Dimensions (W x H x D mm) 216 x 385 x 236 (mm) Rigging Point 7 x M10 inserts (4 x Top, 1 x Bottom, 1 x Left, 1 x Right), Single Hole Cup
Connection 2 X Speakon (1+,1-) [Parallel] Painting Polyurea Coating

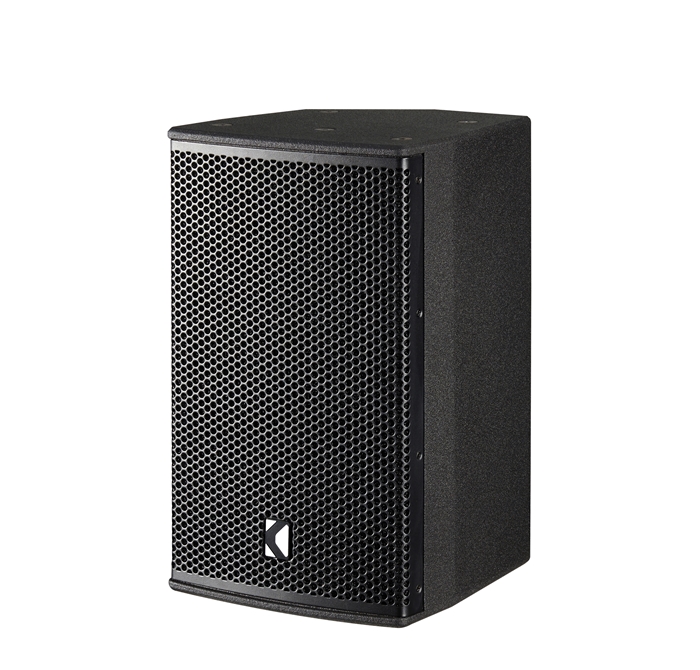

K.8 Downloads

Description

· Compact Size Full-Range Speaker

· 8" Mid Bass & Mid Range Frequency Transducer

· 1" High Frequency Compression Driver

· High-density 12T MDF Enclosure

· Dedicated Passive Network

· Provide DSP Data


The characteristics of K.Series are the attractive mid-low range and high-frequency reproduction that is transparent and straightforward. Based on the rich low range and strong sound pressure compared to the size, the K Series has its own personality so that the sound is not compromised compared to the high-end lineup. The 8-inch product K.8 is a passive type speaker that can be used as the main speaker in a small auditorium with less than 200 seats, and you can feel excellent sound quality without using a separate processor. When the dedicated amplifiers K2008 and K8008 are used together, DSP data is provided for improved performance.


TECHNICAL SPECIFICATIONS

Type Passive AES Power / Program Power / Peak Power 250W / 500W / 1000W
Nominal Impedance Sensitivity (1W / 1m) 93dB
Max SPL 124dB Dispersion Angle(Horn) 80° x 60°

PRODUCT FEATURES

Frequency Range (-10dB) 70Hz ~ 20kHz Weight 11.0kg
Dimensions (W x H x D mm) 273 x 461 x 291 (mm) Rigging Point 13 x M10 inserts (4 x Top, 4 x Bottom, 1 x Rear, 2 x Left, 2 x Right), Single Hole Cup
Connection 2 X Speakon (1+,1-) [Parallel] Painting Polyurea Coating

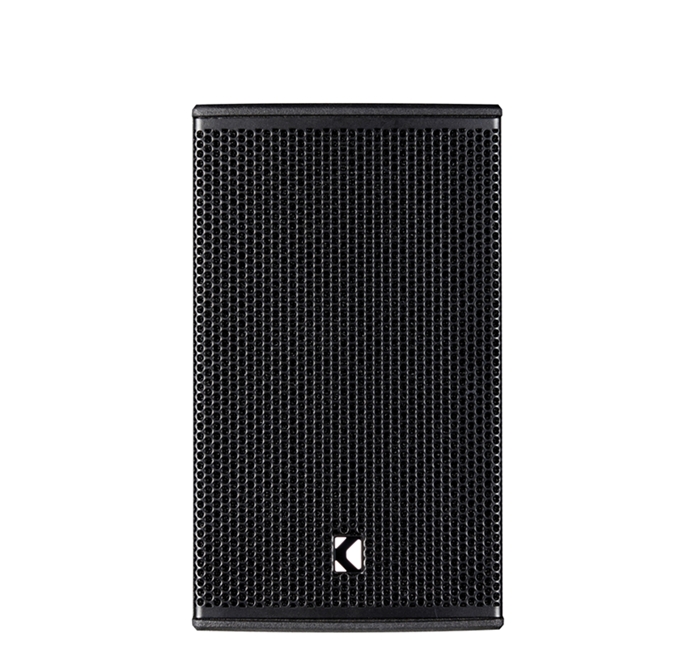

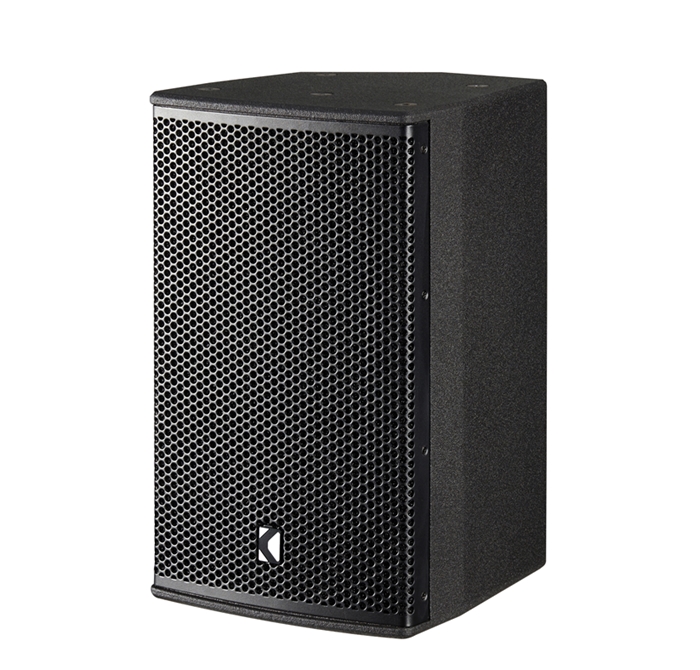

K.10 Downloads

Description

· Medium Size Full-Range Speaker

· 10" Bass & Mid Bass Frequency Transducer

· 1" High Frequency Compression Driver

· High-density 12T MDF Enclosure

· Dedicated Passive Network

· Provide DSP Data


The 10-inch product K.10 is a speaker that shows attractive sound in the low and mid-low ranges. This is a passive type speaker with an enclosure design that can be used as a main speaker and delay speaker in a small auditorium with less than 200 seats and can also be used as a monitor speaker. You can feel excellent sound quality without using a separate processor, and when using the dedicated amplifiers K2008 and K8008 together, DSP data is provided for improved performance.


TECHNICAL SPECIFICATIONS

Type Passive AES Power / Program Power / Peak Power 250W / 500W / 1000W
Nominal Impedance Sensitivity (1W / 1m) 94dB
Max SPL 124dB Dispersion Angle(Horn) 90° x 40°

PRODUCT FEATURES

Frequency Range (-10dB) 70Hz ~ 20kHz Weight 15.67kg
Dimensions (W x H x D mm) 303×542×310 (mm) Rigging Point 14 x M10 inserts (4 x Top, 4 x Bottom, 2 x Rear, 2 x Left, 2 x Right), Single Hole Cup
Connection 2 X Speakon (1+,1-) [Parallel] Painting Polyurea Coating

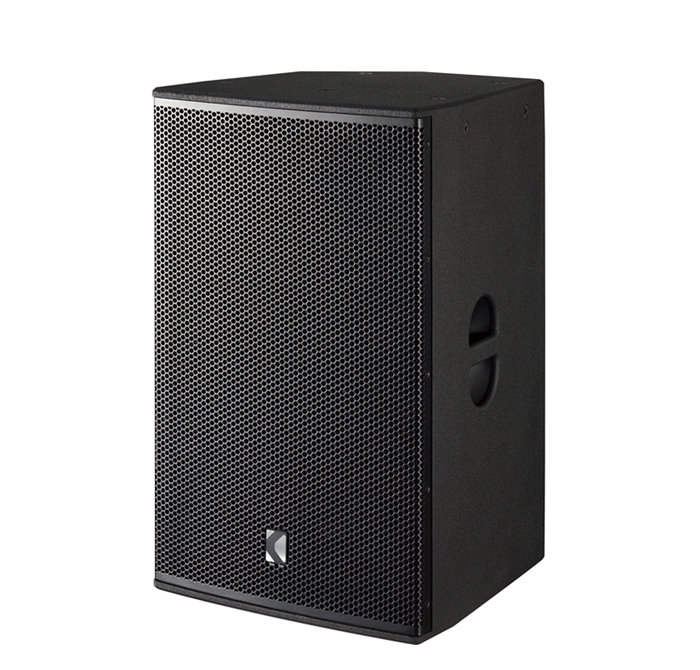

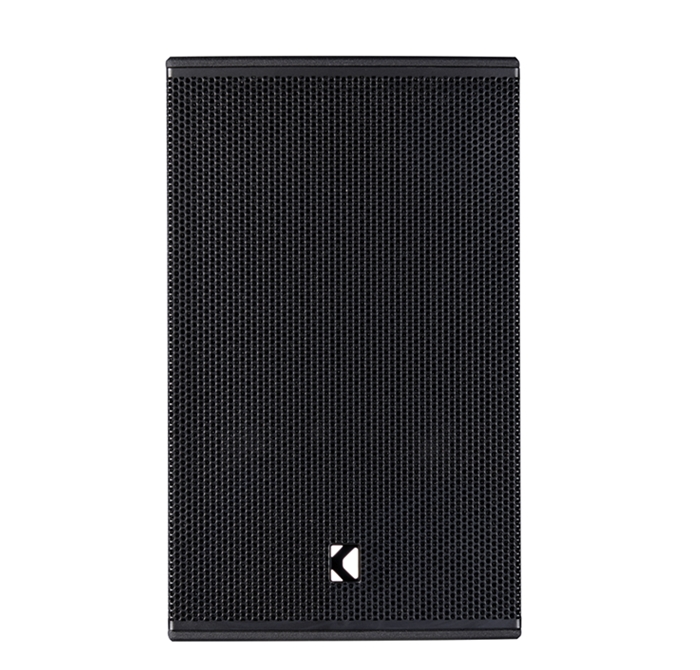

K.12 Downloads

Description

· Full Size Full-Range Speaker

· 12" Bass & Mid Bass Frequency Transducer

· 1" High Frequency Compression Driver

· High-density 12T MDF Enclosure

· Dedicated Passive Network

· Provide DSP Data


The K.12 is a very well-balanced speaker from low to high frequencies. This is a passive type speaker suitable for use as a main speaker for small and medium-sized church chapels and small auditoriums with less than 200 seats. In addition, it has excellent usability because it has an enclosure design that can be used as a monitor speaker. You can feel excellent sound quality without using a separate processor, and when using the dedicated amplifiers K2008 and K8008 together, DSP data is provided for improved performance.


TECHNICAL SPECIFICATIONS

Type Passive AES Power / Program Power / Peak Power 320W / 640W / 1280W
Nominal Impedance Sensitivity (1W / 1m) 96dB
Max SPL 127dB Dispersion Angle(Horn) 90° x 40°

PRODUCT FEATURES

Frequency Range (-10dB) 67Hz ~ 20kHz Weight 20.93kg
Dimensions (W x H x D mm) 370×636×372 (mm) Rigging Point 14 x M10 inserts (4 x Top, 4 x Bottom, 2 x Rear, 2 x Left, 2 x Right), Single Hole Cup
Connection 2 X Speakon (1+,1-) [Parallel] Painting Polyurea Coating

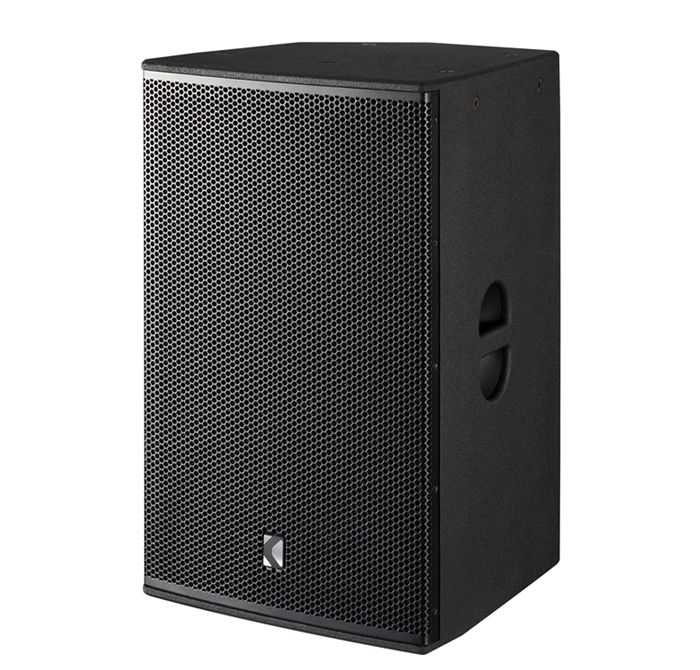

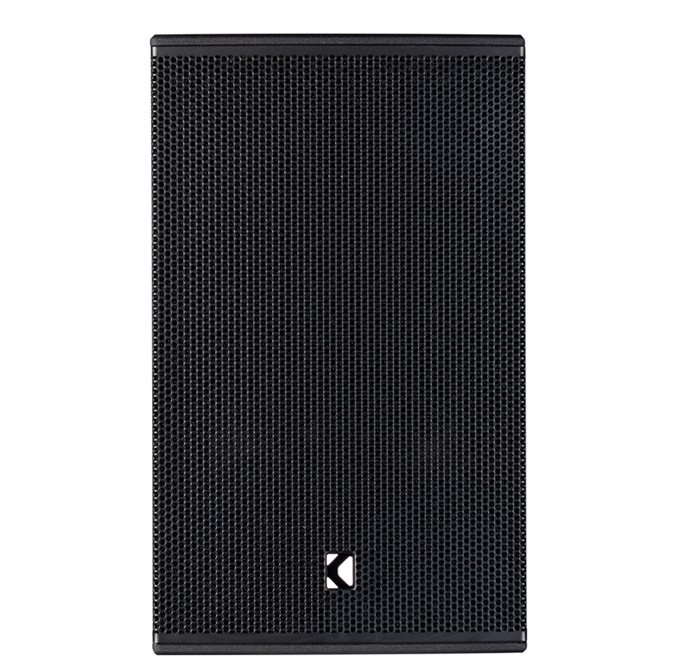

K.15 Downloads

Description

· Over Size Full-Range Speaker

· 15" Bass & Mid Bass Frequency Transducer

· 1" High Frequency Compression Driver

· High-density 12T MDF Enclosure

· Dedicated Passive Network

· Provide DSP Data


The K.15 is the largest speaker in the K.Series and has excellent music reproduction capability. It is a passive type speaker suitable for use as a main speaker for small and medium-sized church chapels and small auditoriums with less than 300 seats. It has excellent usability because it has an enclosure design that can be used as a monitor speaker if necessary. You can feel excellent sound quality without using a separate processor, and when using the dedicated amplifiers K2008 and K8008 together, DSP data is provided for improved performance.


TECHNICAL SPECIFICATIONS

Type Passive AES Power / Program Power / Peak Power 350W / 700W / 1400W
Nominal Impedance Sensitivity (1W / 1m) 97dB
Max SPL 128.4dB Dispersion Angle(Horn) 90° x 40°

PRODUCT FEATURES

Frequency Range (-10dB) 52Hz ~ 20kHz Weight 25.48kg
Dimensions (W x H x D mm) 439 ×724 ×416 (mm) Rigging Point 14 x M10 inserts (4 x Top, 4 x Bottom, 2 x Rear, 2 x Left, 2 x Right), Single Hole Cup
Connection 2 X Speakon (1+,1-) [Parallel] Painting Polyurea Coating
