The role of the subwoofer is not only to fill the insufficient bass of full-range speakers, but also to balance the overall sound and create a more lively sound. Kooon Audio's N.S Series is a dedicated subwoofer lineup for the flagship lineup, N Series. It is a subwoofer speaker that is attractive to NS Series' strong and dense ultra-low frequency reproduction with precisely designed enclosure using Birch Wood and a high performance & High SPL Low Frequency Neodymium Driver capable of playing up to 20Hz ultra-low band. The design is used to create a sense of unity.
About ImP
Products
Downloads
N.S Series
Sub woofer for N Series
N.Sseries

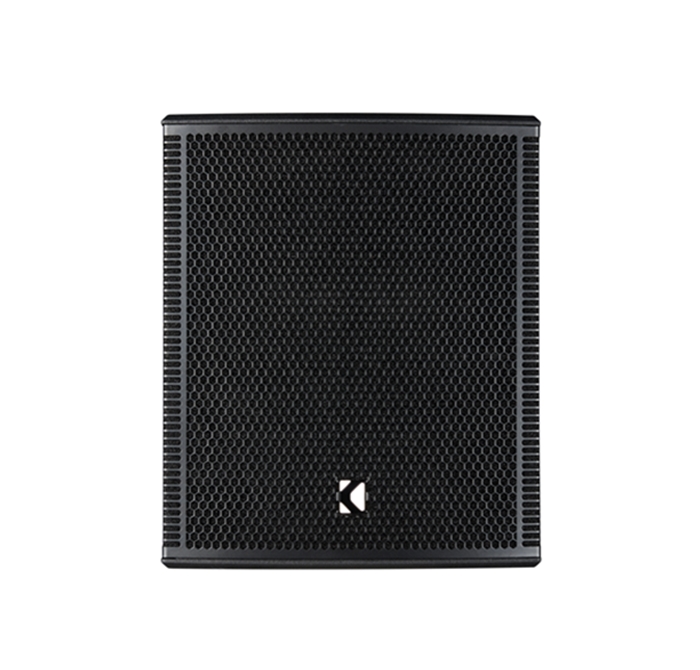

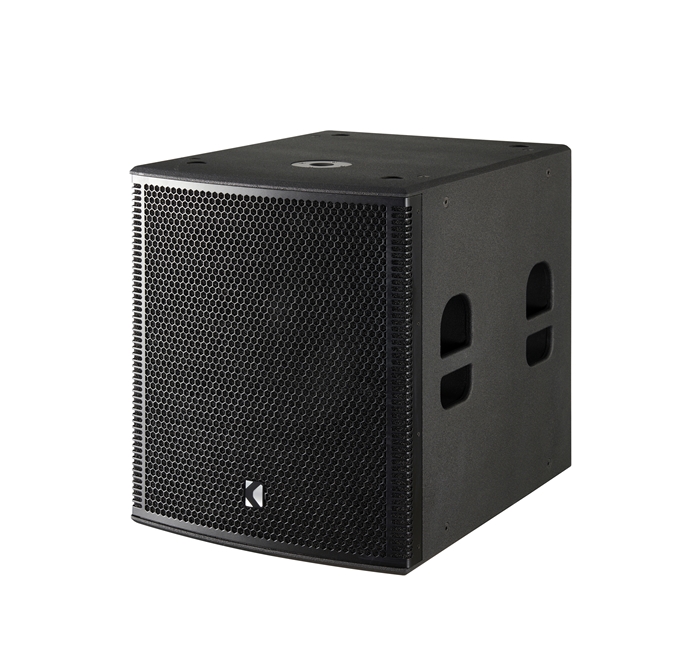

N.15S Downloads
Description
· 15" Low Frequency Neodymium Driver
· Premium Birch PlyWood Enclosure
· Dedicated Passive Network & Active Switch
· Provide DSP Data
The N.15S is a 15-inch single subwoofer model and is suitable for small performances or installations. As it has a solid and dense bass, it is best used for the purpose of reinforcing the bass of the N Series. Using Nordic Birch PlyWood, the enclosure was manufactured with a design that minimizes internal resonance, and a high-power low drive of AES 700W is applied to provide sufficient bass reproduction. The default is Active method, but it can be used by applying a Low Pass Filter when necessary through the Network switch on the rear. It can be used with full-range speakers by using the pole mount hole on the top.
TECHNICAL SPECIFICATIONS
| Type | Active & Passive | AES Power / Program Power / Peak Power | 700W / 1400W / 2800W |
|---|---|---|---|
| Nominal Impedance | 8Ω | Sensitivity (1W / 1m) | 98dB |
| Max SPL | 132dB | Dispersion Angle(Horn) | Omni |
PRODUCT FEATURES
| Frequency Range (-10dB) | 30Hz ~ 760Hz | Weight | 43.30kg |
|---|---|---|---|
| Dimensions (W x H x D mm) | 491 x 591 x 699 (mm) ±5 | Rigging Point | 20 x M10 inserts (5 x Top, 5 x Bottom, 2 x Rear, 4 x Left, 4 x Right) |
| Connection | 2 x Speakon (1+,1-) [Parallel] , Active & LPF Switch | Painting | Polyurea Coating |

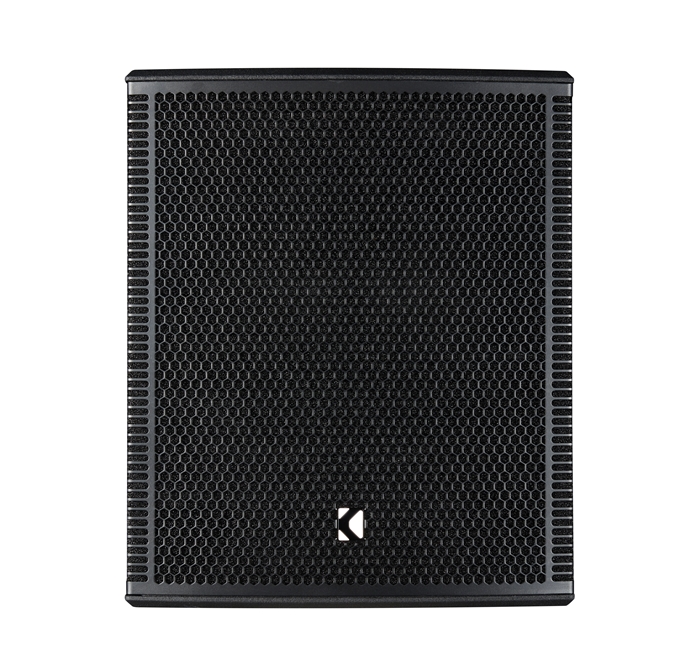

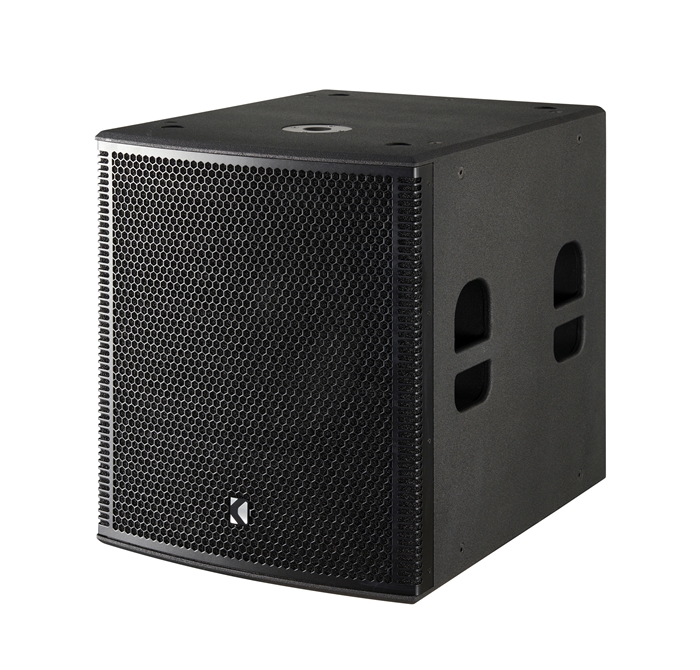

N.18S Downloads
Description
· 18" Low Frequency Neodymium Driver
· Premium Birch PlyWood Enclosure
· Dedicated Passive Network & Active Switch
· Provide DSP Data
The N.18S is an 18-inch single subwoofer model and is suitable for small and medium-sized performances or installations. It has a solid and dense bass, so it is best used for the purpose of reinforcing the bass of the N Series. Using Nordic Birch PlyWood, the enclosure was manufactured with a design that minimizes internal resonance, and a high-power low drive of AES 1200W is applied to provide sufficient bass reproduction. The default is Active, user can use it with a Low Pass Filter when it is necessary through the Network switch on the rear. It can be used with full-range speakers by using the pole mount hole at the top.
TECHNICAL SPECIFICATIONS
| Type | Active & Passive | AES Power / Program Power / Peak Power | 1200W / 2400W / 4800W |
|---|---|---|---|
| Nominal Impedance | 8Ω | Sensitivity (1W / 1m) | 98dB |
| Max SPL | 135dB | Dispersion Angle(Horn) | Omni |
PRODUCT FEATURES
| Frequency Range (-10dB) | 30Hz ~ 680Hz | Weight | 53.62kg |
|---|---|---|---|
| Dimensions (W x H x D mm) | 562 x 672 x 711 (mm) ±5 | Rigging Point | 20 x M10 inserts (5 x Top, 5 x Bottom, 2 x Rear, 4 x Left, 4 x Right) |
| Connection | 2 x Speakon (1+,1-) [Parallel] , Active & LPF Switch | Painting | Polyurea Coating |
